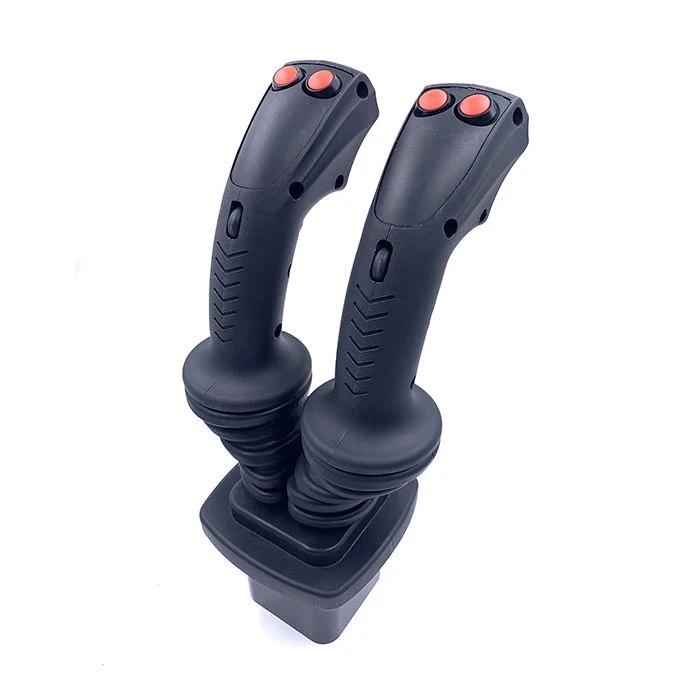

Hall Effect Multi Axis Tes Grip Joystick
Lub kaum ntse ntse ntsuas cov cuab yeej yog Hall sensor nrog lub neej ua haujlwm ntev.
Muaj ntau hom ntawv tso zis ntau lawm.
Ntau yam sab sauv tes yog xaiv tau.
Hauj lwm lawm
Multi-axis Joystick Controls
HJ80 series
Grip hom multi-axis kev khiav hauj lwm kov
Khoom nta
Qhov hnyav-duty kov tsim yog ruaj thiab haum rau kev ua haujlwm siab.
Caij nplooj ntoos hlav rov pib dua, ib leeg-axis lossis dual-axis ua haujlwm.
Lub kaum ntse ntse ntsuas cov cuab yeej yog Hall sensor nrog lub neej ua haujlwm ntev.
Muaj ntau hom ntawv tso zis ntau lawm.
Ntau yam sab sauv tes yog xaiv tau.
Kev siv ntau yam
Cov khoom siv no feem ntau yog siv hauv cranes, loaders, forklifts, excavators, aerial work platforms, tractors, harvesters, etc.
Technical Parameters Technical ln formation
Kev ntsuas hluav taws xob
Hall hom
Lub zog hluav taws xob | 5 ± 0.5Vdc |
Fais fab mov tam sim no (rated fais fab mov tam sim no) | <11mA (single axis) 22mA (dual axis) |
Txwv kev tso cai overvoltage | 20 Vdc |
Rov qab txwv tso cai voltage | -10Vdc |
Linear yuam kev ntawm cov zis voltage | <± 0.2V |
Mechanical Parameters
Lub kaum sab xis | ± 20 degree |
Hom kev ua haujlwm | Tsis siv neeg caij nplooj ntoos hlav rov qab |
Pib quab yuam | 20N |
Kev ua haujlwm siab tshaj plaws | 11N |
Kev txwv quab yuam | > 300N |
Kev pab lub neej | >2 lab lub sij hawm |
Qhov hnyav | cav 660g |
Environmental parameters
Ua haujlwm kub | -30C ~ + 70 degree |
Cia kub | -40 degree ~ + 85 degree |
Qib tiv thaiv | IP65 (saum toj no lub installation vaj huam sib luag) |
Kev xaiv khoom
Series
HJ 80
Txoj kev ua haujlwm
1A | Kev ua haujlwm ib leeg-axis pem hauv ntej-rov qab |
2 AC ua | ib qho kev ua haujlwm ntawm ob axes |
Input voltage
S | 5Vdc (tus qauv voltage |
W | 9 ~ 36Vdc (dav voltage |
Tso zis teeb liab
Hall hom (siv voltage 5VDC)
H51 | Ib Hall, 0.5 ~ 2.5 ~ 4.5Vdc voltage tso zis |
H52 | Ib leeg Hall, 0 ~ 2.5 ~ 5Vdc voltage tso zis |
H53 | Ib leeg Hall, 1.25 ~ 2.5 ~ 3.75Vdc voltage tso zis |
H54 | Ib Hall, 1.0 ~ 2.5 ~ 4.0Vdc voltage tso zis |
Upper kawg ntawm kov
SC (SC series kov, tsis muaj kev nyab xeeb hloov, vaj huam sib luag nrog 1 rocker)
※ Xaiv tau SS series, HB series, KM series kov
Txoj kev tawm mus
L (qhov hluav taws xob ncaj qha)
※ Daim ntawv qhov hluav taws xob ntawm lwm cov khoom sib txuas tuaj yeem hloov kho
Kev teeb tsa hluav taws xob
Ncaj nraim
Kab xaj / xim | muaj nuj nqi |
Tsis yog 1 | VCC |
Tsis yog 2 | GND |
No. 3 | X axis tso zis |
No. 4 | Y-axis tso zis |
Xim av | sawsaw thiab kev nyab xeeb hloov ntau yam |
Daj | sab laug |
Dawb | txoj cai rocker |
Kev sim
Txhawm rau ua kom tau raws li cov neeg siv khoom xav tau rau cov dej tsis zoo thiab plua plav, peb ua cov kev ntsuas dej tsis zoo thiab cov plua plav pov thawj ntawm cov joysticks.
Kev ntsuas dej tsis haum
Kev kuaj plua plav
Yog tias koj muaj lwm yam kev xav tau ntawm kev sim, thov hu rau peb.Nws muaj los kuaj ntau yam khoom.
FAQ:
Q1: Koj puas yog lub tuam txhab lag luam joystick lossis chaw tsim khoom?
A1: Peb yog cov chaw tsim khoom lag luam joystick controllers nrog 20+ xyoo dhau los.
Q2: Muaj pes tsawg pcs joystick koj tsim txhua lub hlis?
A: Peb tuaj yeem tsim ntau tshaj 20000 daim txhua lub hlis. Peb lub tuam txhab loj hlob, yog tias koj xav tau ntau dua, peb tuaj yeem ua kom muaj peev xwm ntau lawm hauv lub sijhawm luv luv.
Q3: Yuav ua li cas kom tau txais kev saib xyuas dawb rau tag nrho lub neej?
A3: Yog tias koj yog tus neeg siv, koj tuaj yeem xa rov qab mus rau lub Hoobkas, tom qab kuaj xyuas thiab kho, xa rov qab rau tus neeg siv khoom thiab muab daim ntawv qhia txog kev kho. Yog tias koj yog tus neeg muag khoom, peb muab cov khoom dawb rau koj lossis xa rov qab los kho. Peb kuj tuaj yeem muab kev pabcuam pauv.
Q4: Puas muaj cov lus qhia siv rau cov khoom lag luam customized?
A4: Yog lawm, peb muab cov kev qhia ntawm kev hloov kho joysticks. Yog tias xav tau, peb tuaj yeem muab kev qhia video lossis online. Raws li ib txwm muaj, tsis muaj kev qhia rau AWP joysticks siv rau kev saib xyuas tom qab muag, tab sis yog tias koj muaj lus nug, peb tuaj yeem teb rau koj.
Utility patent daim ntawv pov thawj
Daim ntawv pov thawj zoo
Hais txog shipping
Feem ntau nws yuav siv sij hawm 2 lub lis piam kom tiav cov khoom. Yog tias tus neeg siv khoom xav tau joysticks ceev, peb tuaj yeem ua raws li tus neeg siv khoom xa khoom hauv lub sijhawm ceev tshaj plaws. Yog tias nws yog ib qho kev txiav txim me me, peb siv kev xa mus rau lub qhov rooj. Yog tias koj xaj ntau ntau, koj tuaj yeem xaiv hiav txwv, av lossis huab cua freight.
Ceev, raug, Zoo!
Kev pabcuam
Peb muab tag nrho lub neej warranty rau tag nrho peb cov joysticks.
